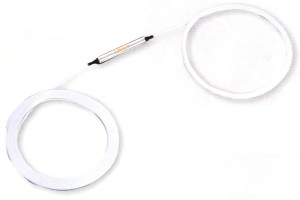

薄膜濾鏡式波長多工器

 FEATRES
 Low polarization sensitvity
 Low insertion loss
 Compact size
 High Directivity
 Environmentally stable and reliable
 APPLICATIONS
 Telecommunications
 Subscriber Loop
 Testing Instruments
 CATV
 Local Area Networks (LAN)
 Fiber Optical Sensors

功能:將二個不同波長的信號結合或分開;多工器可把二個不同波長的光信號結合注入到一根光纖中﹔相反地,解多工器則把不同波長的信號分離出來。

Parameter

1310/1550

1480/1550

1550/1625

Pass Channel Wavelength Range (nm)

1500 1600

1528 1610

1530 1570

1605 1645

Or Customer Specify

Reflection Channel Wavelength Range (nm)

1260 1370

1440 1439

Insertion Loss(dB)

Reflection Channel

0.6

0.6

0.6

Pass Channel

0.6

0.8

0.8

Isolation (dB)

Reflection Channel

15

14

13

Pass Channel

30

25

25

Passband Ripple

0.3

0.15

0.3

Polarization Dependent Loss(PDL) (dB)

0.1

0.1

0.1

Polarization Mode Dispersion (ps)

0.05

0.05

0.05

Directivity (dB)

55

Return Loss (dB)

50

Operating Temperature ()

-20 to +70

Storage Temperature ()

-40 to +85

Optical Power (mw)

500

Package Dimension (mm)

65(L) × 5.5(OD)

Values are referenced without connector(s)
