光調制器

 FEATRES
 Ti-diffusion process
 Single-drive technology
 50 Ω design
 Low optical reflections
 Low drive voltage
 Low insertion loss
 APPLICATIONS
 Digital telecommunication
 SONET / SDH
 Medium and long haul transmission
 DWDM and TDM transmission

功能:在光纖通信系統中,把要傳送之信號加載到光波上的過程就是調制。光調制器就是實現從電信號到光信號的轉換的元件。

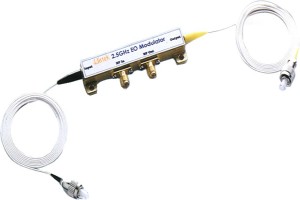

2.5Gb/s LiNbO3 Electro-Optic Modulator

Material

LiNbO3

Crystal Orientation

Z-cut

Operation Temperature,

0-70

Parameter

Min

Typ.

Max.

Unit

Operating Wavelength

1530

1550

1570

Nm

Insertion Loss



4.5



dB

Return Loss

40

50



dB

On/off Extinction Ratio



20



dB

Input Optical Power (at DC)





100

MW

3dB Bandwidth



2.5



Ghz

Vπ (at 1kHz)



4.0

4.5

Volt

S11



-15

-10

dB

Input Impedance



50



Ω

Fiber

Fujikrua PANDA(Input); Corning SMF-28(ouput)

Dimension (mm)

75(L) × 12(W) × 8(H)

Values are referenced without connector(s)
