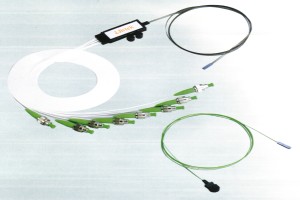

光纖陣列
功能：光纖陣列是陣列波導式高密度波長多工器AWG DWDM 在後段封裝過程中的關鍵性元件，其功用在陣列波導式高密度波長多工器晶片上之平面波導與光纖間之連接。
Parameter
FAV1
FAV2
FAV4
FAV8
FAV16
FAV32
FAV40
FAV48
Number of Fiber
1
2
4
8
16
32
40
48
Fiber spacing (μm)
250 ± 1
Vertical uniformity (μm)
± 0.5
Polish Angle (°)
0 , 8 +/- 0.3
Operation Temperature (℃)
-40 to +75
Storage Temperature (℃)
-55 +85
Length
FA to Fan-out
1m
Fan-out to
Connec
Fiber Type
0.9mm
Ribbon ( 8 )
Connector Type
FC , ’SC , ST
Polishing Type
PC , UPC , APC
