SPECIFICATIONS FOR TREE and STAR COUPLERS
|
|
Parameter
|
1×4
|
4×4
|
1×8
|
8×8
|
1×16
|
16×16
|
1×32
|
32×32
|
|
Operating Wavelength(nm)
|
800 ~ 1600
|
|
Typical Excess Loss (dB)
|
1.5
|
1.5
|
2.0
|
2.0
|
2.5
|
2.5
|
3.0
|
3.0
|
|
Coupling Ratio
Tolerance
%
|
5
|
|
Max. Insertion
Loss (dB)
|
7.5
|
8.0
|
11.0
|
11.5
|
15.0
|
15.5
|
18.0
|
19.0
|
|
Uniformity (dB)
|
0.8
|
1.0
|
1.2
|
1.5
|
2.5
|
3.0
|
4.0
|
4.5
|
|
Directivity (dB)
|
＞40
|
|
Operating Temp. (℃)
|
-40
to +85*
|
|
Temp. Sensitivity(dB/℃)
|
＜0.002
|
|
Storage Temp. (℃)
|
-50 to +85
|
|

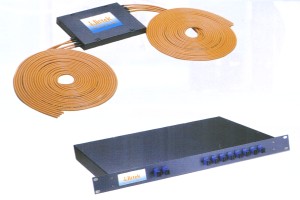

Package Dimension (mm)
|
P1
|
P1
|
P2
|
P2,U1
|
P2,U1,
U2
|
U1,U2
|
U1,U2
|
U2
|
|
P1=100(L)
×
80(W) × 12(H) ,
P2=140(L) ×
90(W) × 11.5(H)
U1=
482(L) × 256(W) ×
44(H) , U2=482(L) × 256(W) ×
88(H)
|
|
Values
are referenced without connector(s)
* -20℃ ~ 70℃ for PVC Cable
|
|
