Manufacturing Tours

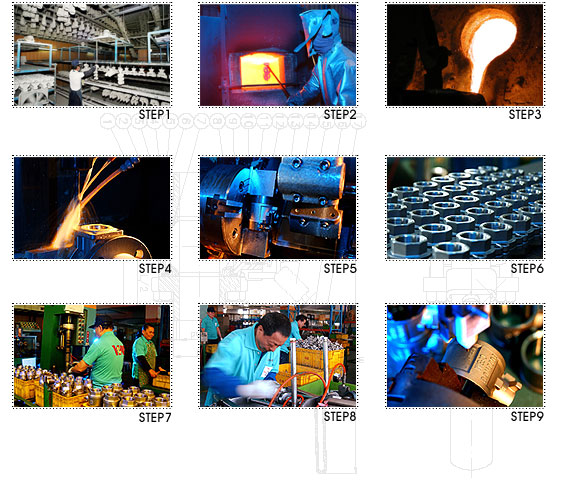

    Manufacturing Process

1 Die Design 2 Tool Making 3 Wax Injection 4 Patern Assembly

5 Dipping 6 Stuccoing 7 Wax Removal 8 Mold Preheat

9 Pouring 10 Grinding 11 Blasting 12 Heat Treatment

13 Machining 14 Assembling 15 Pressure Test 16 Passivation




    Quality Assurance System

Process
Major Facilities
QC Range

Tooling
CAD die making machine
3D Layout Machine
Dimensions & Tolerance

Casting
Spectrometer Analysis
Marking Machine
Composition Analysis
Casting Data Control

Heat Treatment
Cone Hardness Tester
Tension Tester
Optical Microscope
Mechanic & Physical
Character Analysis

Machining & Assembling
NC Machines & Gauges
Pressure Test Machine
Passivation Machine
Dimensions & Threading Control
Pressure & Leakage Control
Corrosion Resistance Control

General Inspection
100 Percent Visual
inspection
Surface Checking
Final Inspection


    QC Facility in plant


3D Layout Machine

Cone Hardness Tester

Optical Microscope

Microscope

Passivation Machine

Spectrometer Analysis

Tension Tester
